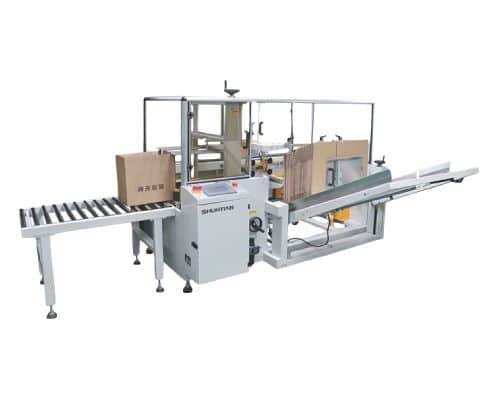

Semi Automatic Manual Carton Case Erector STK-40
- Origin:Tianjin,China
- Certificate:ISO9001
- Price terms: FOB, CIF, CFR
- Payment terms:T/T, L/C
- Min order: 1 set
Check out this video on How To Use Semi Automatic Case Erector
| Model | STK-40 |
| Production Speed | 12ctns/min |
| Power Supply | 220V, 1∮, 200W |
| Carton Size | L250-450xW150-400xH100-400 |
| Air compressing | 6kg/cm³ |
| Air comsumption | 450NL/MIN |
| Machine dimension | L2000xW1900xH1450mm |
| Machine weight | 450KG |
| Adhesive tape width | 48/60/75MM |
The manual carton bottom sealing machine is one type of case erector, the biggest advantage is economical, the sealing speed is 12 pcs/min.
Features for Semi automatic case erector?
1.The manual case erector adopts international Siemens, Schneider and other electronic components, easy to adjust, and can complete the top and bottom sealing action at one time.
2.The manual box erector can adopt the printing tape, which can improve the image of the product, and is the choice of automatic packaging enterprises.
3.It can be used in stand-alone operation or with assembly line.
4.It is equipped with transparent plexiglass shield, and the door will stop automatically to avoid operation accidents.
Semi auto case erector is widely used in household appliances, textile, food, department store, medicine, chemical industry, etc.
FAQ for manual case erector?
1. Could the manual bottom sealer change the carton size?
When the carton size is changed, it is very easy and convenient to adjust manually without changing molds and tapes, etc.
2. Can you provide help when I need to replace parts?
Using high level, general parts will not easily fail, if it fails, we will assist you to mail it.
