Toilet bar soap shrink wrap packaging wrapping machine for sale

Toilet bar soap packaging machine is one type of pillow type shrink wrap machine. mainly used for automatic packaging production of various soap, transparent soap, laundry soap, sulfur soap and other products. Do you know how to package bar soap?

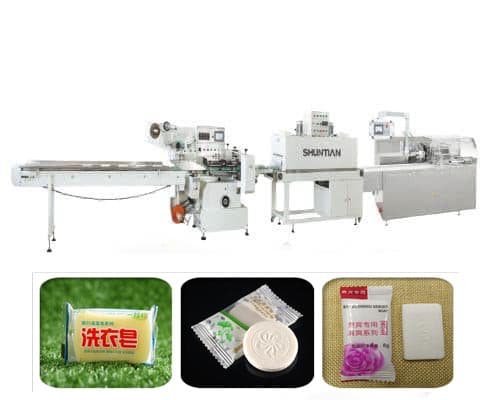

soap bar pillow packaging machine

Horizontal Bar Soap Wrapping Machine

  • Origin:Tianjin, China
  • Price terms: FOB, CIF, CFR
  • Type:T/T, L/C
  • Min order: 1 set

Check out the following video on how to use bar soap packaging meachine

How to shrink wrap soap with plastic wrap?

This is a high speed pillow type packing machine. Its operating principle is to send bar soap to the front of the bag-making machine through a conveyor, track the position of the soap through high-sensitivity photoelectric, rotate constant temperature hot air cuts, and seal and cut the front and back ends of the package.

Advantage of the soap wrapping machine

1. Easy to operate, only need a button to control the soap wrapping machine.
2. The precision of packaging is better, and the error is less than 1%.
3. The length of the packaging can be adjusted by itself, which is suitable for a wide range of soap bar packaging.
4. When a fault occurs, it can be checked through the touch screen.
5. Adopting foreign advanced blades, widely used in PP film, POF film, PE film, etc., without sticking to the knife, and good molding.
6. It adopts the world’s open cabinet structure with strong controllability.

Configuration for bar soap wrapping machine for sale

Model STF-4535L/M STS-4525 STS-5030LS
Power 2kw 220V 10kw 380V 16kw 380V
Packaging size W+H≤430mm;H≤110mm L500*W400*H200mm L1200*W450*H300mm
Sealing/Tunnel size L550*W450mm L1000*W450*H250mm L1500*W500*H300mm
Packaging Speed 1-25ppm 20-40ppm 20-60ppm
Max current 10A 30A 32A
Machine Size L1830*W850*H1550mm L1300*W715*H1455mm L2000*W1100*H1250mm
Weight 250kg 185kg 650kg

Optional device:

1. Coding machine
2. Straight grain middle sealing wheel
3. Reticulated end sealing mold
4. Large touch screen
