Horizontal Continuous Band Sealer Machine
- Certificate:ISO9001
- Price terms: FOB, CIF, CFR
- Payment terms:T/T, L/C
- Min order: 1 set
- Fob prices: 170 USD-1500 USD(Based on type and quantity)
Technical parameter
| Model | STFK900G |
| Voltage | 220V 50Hz |
| Power | 0.65Kw |
| Sealing speed(m/min) | 0-24 |
| Temperature control | 0-400 |
| Coding | STAMPING |
| Conveyor size(L*W) | 840*153mm |
| MAX single bearing | <1 kg |
| MAX total bearing | <5 kg |
| Machinery size(L*W*H) | 800*400*305 mm |

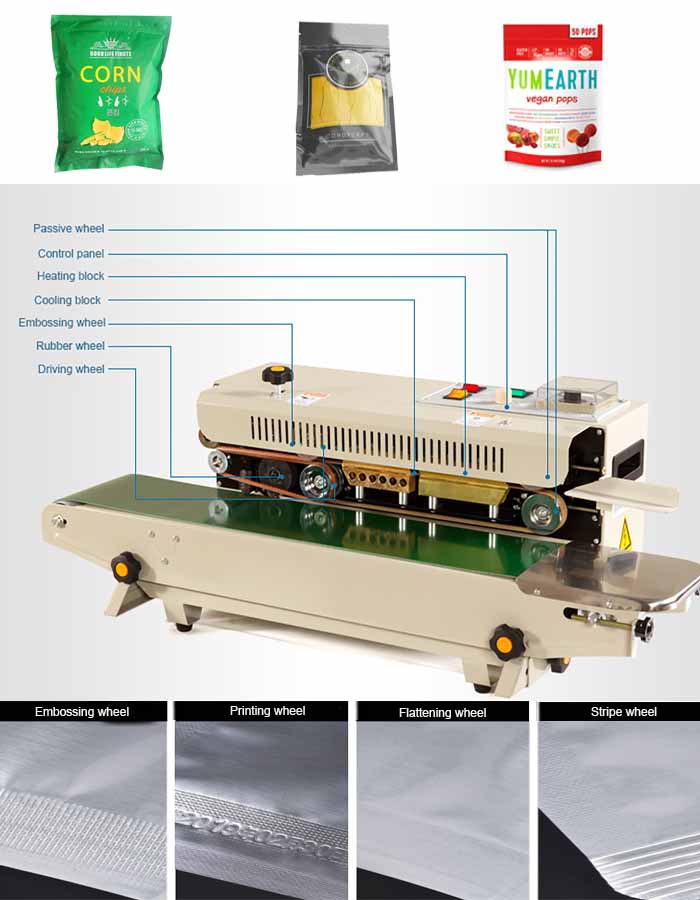

Advantage for the horizontal shrink band sealer machine:
1.Suitable for many kinds of bags, automatic conveying, constant temperature control, suitable for sealing in food, chemical and other continuous bag making industries.
2.Good sealing effect, equipped with sealing wheel machine, can be equipped with printing date, LOGO, etc.
3.The shrink band machine is sealed firmly, with pure copper heating and cooling system.
4.Adopt automatic conveying device, horizontal belt sealing manufacturer design, strengthen and thicken the active conveying wheel and passive conveying wheel, make the machine run more smoothly.
5.The thick and wear-resistant conveyor belt is more durable than the common conveyor belt in the market and suitable for long-term continuous work.
6.The printing pressure rotary button can be adjusted according to actual needs to suit different sealing materials.
7.The distance up and down on the conveyor table can be adjusted, and the parameters can be adjusted according to the actual needs to improve the efficiency of the products.
8.The power supply is equipped with safety protection, the fuse will automatically blow when the power supply is out of normal use range to protect the horizontal shrink band machine safety.
Conclusion:
Stainless steel horizontal continuous band sealer machine is the best choice for small packaging industry. Its continuous sealing process of plastic films made from different materials is suitable for various industries.
The sealing speed depends on the operator’s working capacity and the type of sealing film used. Aside from its easy operation, the horizontal continuous band-sealer is also available in a variety of sizes to meet different requirements.
These machines are designed for light-duty continuous bag sealing applications. They are available with various capacities and are suited for sealing stand-up pouches, pillow-type bags, and barrier bags.
The patented roller-style conveyor system allows for flexible packaging, and allows for a tighter seal on each product.
